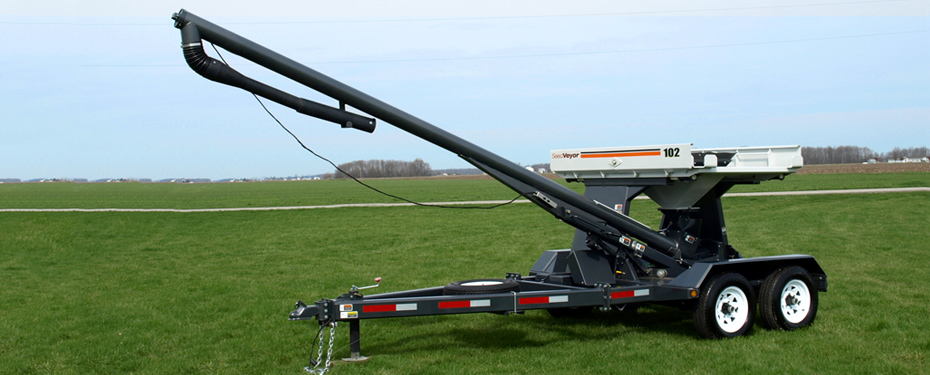

SeedVeyor Bulk Box Seed Tender

Time and convenience are two of your most valuable commodities at planting. That’s why more growers are discovering the time and cost savings of delivering bulk box seed to the field and planter with the new SeedVeyor model 102 bulk box tender.  The conveyor unloading system provides fast and gentle unloading which makes the bulk box tender the perfect fit for any operation.

    Platform

    Construction

    • 2 seed box carry capacity equallying approximately 100 seed units.
    • L.E.D. running, hazard and brake lights for safe road transport.
    • Easy-opening 5" x 6" door with rubber funnel regulates seed flow into conveyor or auger.
    • Powered by a gas engine with electric start and centrifugal clutch direct-drive system for the quickest response.
    • Dual unloading chutes feed the intake from a central point for greater unloading efficiency.
      • Protective lids cover the unloading chutes when not in use to keep out moisture and debris.

    Conveyor

    Operator Ease

    • Standard on/off wired remote with magnetic mount.
    • 18' long steel tube with 4' - 6' telescoping downspout can reach 30'.
    • Hinged bottom door allows for easy and complete cleanout.
    • The conveyor/auger base features rollers that pivot a full 180° and can be locked into place for unloading.
    • Winch-controlled height adjustment for unloading ease.
    • Powered by a gas engine with electric start and centrifugal clutch direct-drive system for the quickest response.

    Conveyor

    • Conveyor features a cupped and cleated 8" belt inside of a 6" tube that gently carries seed at speeds up to 12 bushels per minute.
    • Patented brush seal on conveyor inlet prevents seed from back-feeding.

    Undercarriage

    Safer Transport

    • Undercarriage features heavy steel construction, rubber-cushioned suspension, tandem axles with electric brakes, highway-rated tires, lights, reflectors, 2 5/16" ball hitch and transport chains.
    • Two part urethane enamel finish on carrier with all seams silicone sealed for a rugged, long-lasting finish.
    • Undercarriage, conveyor/auger and other parts are powder-coated in a contrasting midnight gray.

    Accessories

    Available Options

    • Electronic Scale Package with large screen for easy viewing
    • T&G applicator for easily applying talc and graphite to your seed
      • Mounts to conveyor intake
      • Internal agitator keeps talc flowing
      • Flow-control electric dial for easy rate adjustment
    • Spare tire package
    • 10' three-stage telescopic downspout for additional reach and filling convenience
    • Electronic lift/lower for auger/conveyor (over 4' of height adjustment)
    • 2-Function Wireless Remote controls conveyor on/off and when equipped with optional electric winch also controls raise and lower.  Includes wrist strap for easier control.
    • Pintle or clevis hitch
