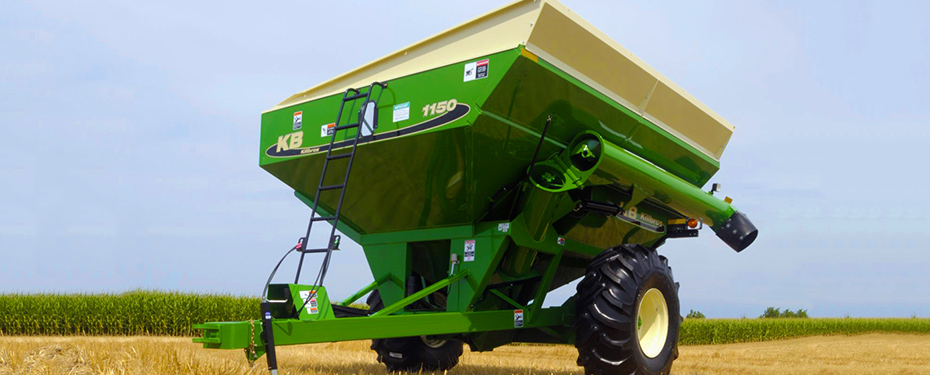

Mid-Size Corner Auger Grain Carts

The Killbros 1100-Series of mid-size side-fold, corner-auger grain carts feature a 500 or 600 bushel carrying capacity, making it the right size for smaller acreage requirements.  The side-fold, single-auger design allows the upper auger to be longer, increasing side reach and height, which allows the operator to drop grain straight down for greater control.  The 14” diameter auger provides unloading speeds up to 300 bushels per minute.  The unique auger sump and steep side slopes ensure quick and complete cleanout of grain during each unload.  The Killbros 1100-series of mid-sized grain carts will be an economical, valuable and time-saving addition to your harvest operation.

    Auger

    Auger Standard Features

    • Single,corner-auger with a side-folding design increases the upper auger length for greater side reach and height.

    • The14" diameter auger provides unloading speeds up to 300 bushels per minute.

    • 5/16" thick flighting provides long-term, trouble-free operation.

    • Spout-mounted LED unloading light for easy night time operation.

    • Exclusive, single-point auger connection ensures the upper and lower augers are aligned for a smooth and efficient transfer of grain between the upper and lower auger.

    • Electronic balancing of the upper and lower auger sections virtually eliminates vibration for long-term life.

    • The cushioned auger fold cylinder gently folds and unfolds the upper auger into the loading and transport position.

    • When in the unload position, the hydraulic locking mechanism holds the upper and lower augers tightly together for a leak-free seal.

    Tank

    Tank Standard Features

    • Models 1150 and 1160 feature tank capacities of 500 and 600 bushels to meet smaller acreage or field requirements.

    • Tank features an exclusive deep sump design, which funnels grain down into the auger for fast and complete unloading.

    • Steep 36° front and rear tank slopes and a graphite coated interior ensures complete cleanout and faster unloading speeds regardless of grain moisture.

    • Hydraulically operated flow gate features a highly visible position indicator for easily controlling grain flow while unloading.

    • Conveniently located lever-operated gravity unloading door located on the auger sump permits easy cleanout.

    • Exclusive manufacturing process crimps side panels for added strength and exposed seams are silicone sealed for corrosion resistance.

    • Durable, high-grade enamel paint is baked on in tractor red or green for a long-lasting and smooth, automotive-like finish.

    • Front viewing ladder and front and rear shatterproof windows allow the operator to easily monitor tank contents.

    • Standard transport chain, D.O.T. approved flashing LED taillights, side marker lights, reflective markings and SMV emblem for safer road transport.

    • Color-coded and labeled hydraulic hoses with storage holder for added organization and convenience.

    • Grating over the auger intake prevents debris and foreign objects from entering the auger.

    Undercarriage

    Rigid Axle Singles

    • Choice of tractor lug or diamond tread design depending on tire.
    • Model 1135 features a 134" rigid axle.
    • Model 1195 features a choice of 134" or 144" rigid axle.
    • Models 1150, 1160, 1175 and 1185 feature a 120" rigid axle.
    • Mutliple tire options available.

    Adjustable Axle Singles

    • Choice of tractor lug or diamond tread design depending on tire.
    • Available on models 1175, 1185 and 1135 and are adjustable from 120" to 150" centers.
    • Multiple tire options available.

    Adjustable Axle Duals

    • Straddle row design available on models 1175 and 1185.
    • Multiple tire options available.

    Accessories

    Accessories

    • Model 640M scale package with indicator- Printer Ready
      • Optional Roll Printer
      • Optional Downloader Kit
    • Weatherguard roll-tarp features:
      • Custom-designed with heavy-duty, 18 oz. black canvas for long life.
      • Semi trailer locking design for optimum protection from high wind and moisture.
      • Low-profile tarp bows are reinforced to eliminate sagging.
    • 2-way directional downspoutprovides in-and-out control for easily topping off trucks.
    • Hydraulic drive features:
      • Tongue-mounted for easy installation - the grain cart can still be operated with a PTO if desired.
      • 55 gallon per minute provides up to 300 bushel per minute unloading speeds and requires 2 sets of hydraulic ports.

    Specs

    Model Number 1160 1150

    U.S. patent #5,374,082

    *Bushel capacities were measured with #2 corn at 15% moisture (56 lb. test weight)

    Due to continuing improvements in the design and manufacture of Unverferth products, all specifications contained herein are subject to change without notice.

    Capacity*(bushels) 600 500
    Auger Size 14" 14"
    Flighting Thickness 5/16" 5/16"
    Output Shaft Dia. 1-3/4" 1-3/4"
    Appr. Empty Weight (lbs) 6,300 6,100
    Est. Loaded Tongue Wt. (lbs) 3,600 3.200
    Unload Time (bu/min) 350 350
    Auger Reach 7'3" 7'3"
    Tractor H.P. Req. 140+ 130+
    Tire Size 24.5x32 20.8x38
    Unverferth Grain Cart Specifications A 13'9" 13'9"
    B 7'3" 7'3"
    C 13'9" 13'9"
    D 19'5" 19'5"
    E 13'2" 13'2"
    F 7'3" 7'3"
    G 11'6" 11'
    H 10'2" 9'8"
    I 1'6" 1'6"
    J 10' 10'
    K 12'1" 11'9"
    L 12' 12'
    M 11'1" 11'10"
    N 15' -
    O 16'6" -
    Loaded Tire Ground Pressure - P.S.I. Specifications calculated at the 3" penetration level.
    30.5x32 16.11 13.71
    24.5x32 19.39 16.51
    23.1x26   18.39
